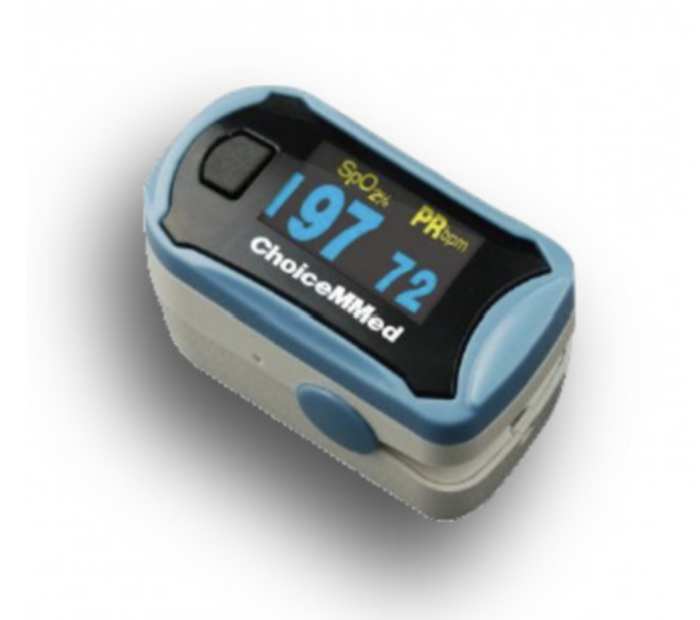

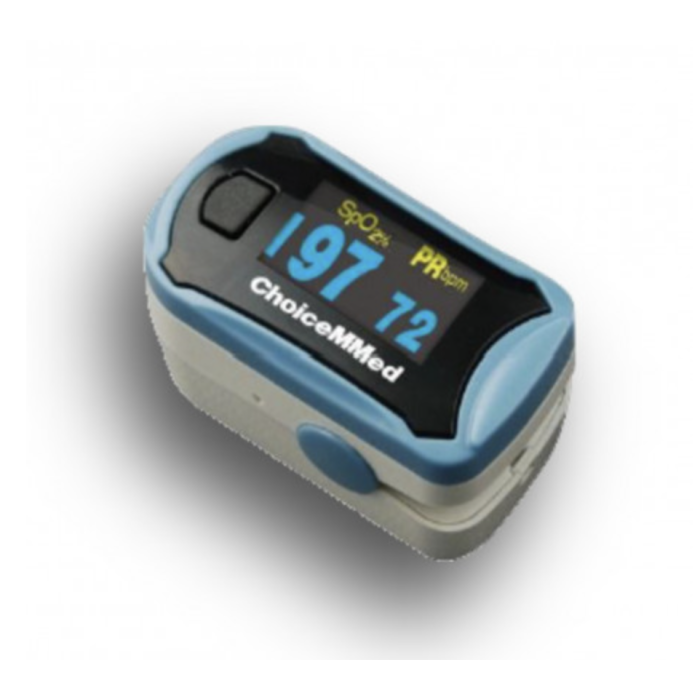

Digital Pulse Oximeter
The most advanced technology with an attractive and easy-to-use design.
The pulse oximeter is an essential tool for checking oxygen saturation (SpO2) and pulse rate. It is small, compact, simple, reliable, and durable for physiological monitoring. It is widely used in clinics, hospitals, internal medicine, healthcare organizations, and home care, among others.
Includes a strap for carrying around the neck.
FEATURES
Two-color OLED display showing SpO2, PR, pulse bar, and waveform
Low power consumption; real-time battery status indication
Adjustable brightness levels from 1 to 10
6 display modes
Powered by 2 AAA batteries; low battery indicator
Automatic power-off
Certifications: CE, FDA, CFDA
TECHNICAL SPECIFICATIONS
Application range: Pulse and SpO2 monitoring in adults, adolescents, and children
Measurement range: 70% ~ 100%
Pulse rate measurement range: 30 bpm ~ 250 bpm
Resolution: 1%
Resolution: 1 bpm
Measurement accuracy:
70% ~ 100% ± 2%; 0% ~ 69% undefined
30 bpm ~ 99 bpm ± 2 bpm; 100 bpm ~ 250 bpm ± 2%
Screen dimensions and weight:
Type: OLED
Dimensions: 58 mm (length) * 32 mm (width) * 34 mm (height)
Parameters: SpO2, PR, pulse bar, and waveform
Weight: 50 g (including batteries)
Power requirements:
Battery: Two 1.5V AAA batteries
Power consumption: Less than 40 mA
Environmental requirements:
Operating temperature: 5℃ ~ 40℃
Humidity: 15% ~ 93%, non-condensing
Storage temperature: -25℃ ~ +70℃
Storage humidity: ≤93%, non-condensing
